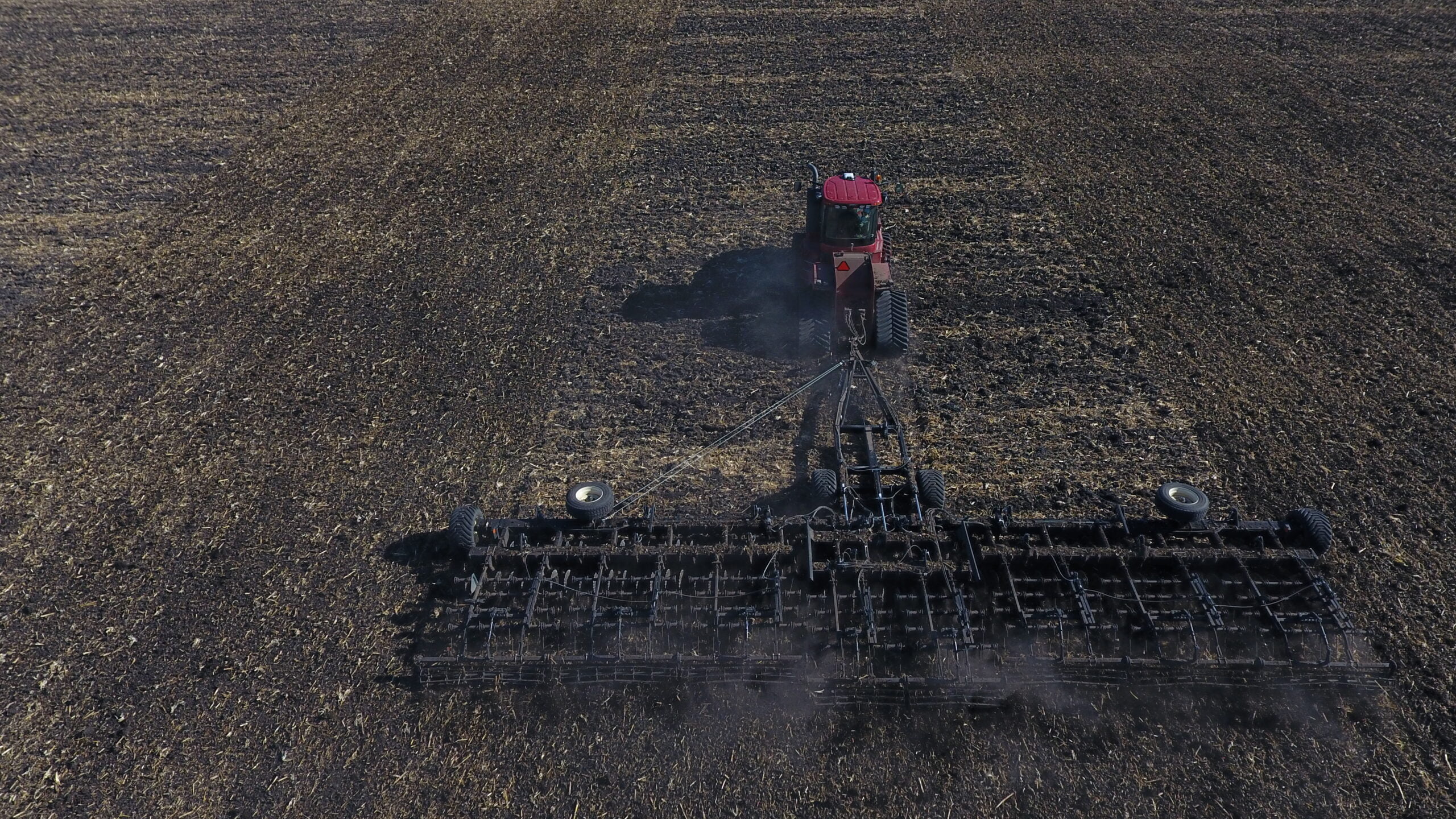

Double Row Coulter Harrow
Extremely good in wet conditions for drying out ground and seed bed preparation. Great for residue management, including legumes.

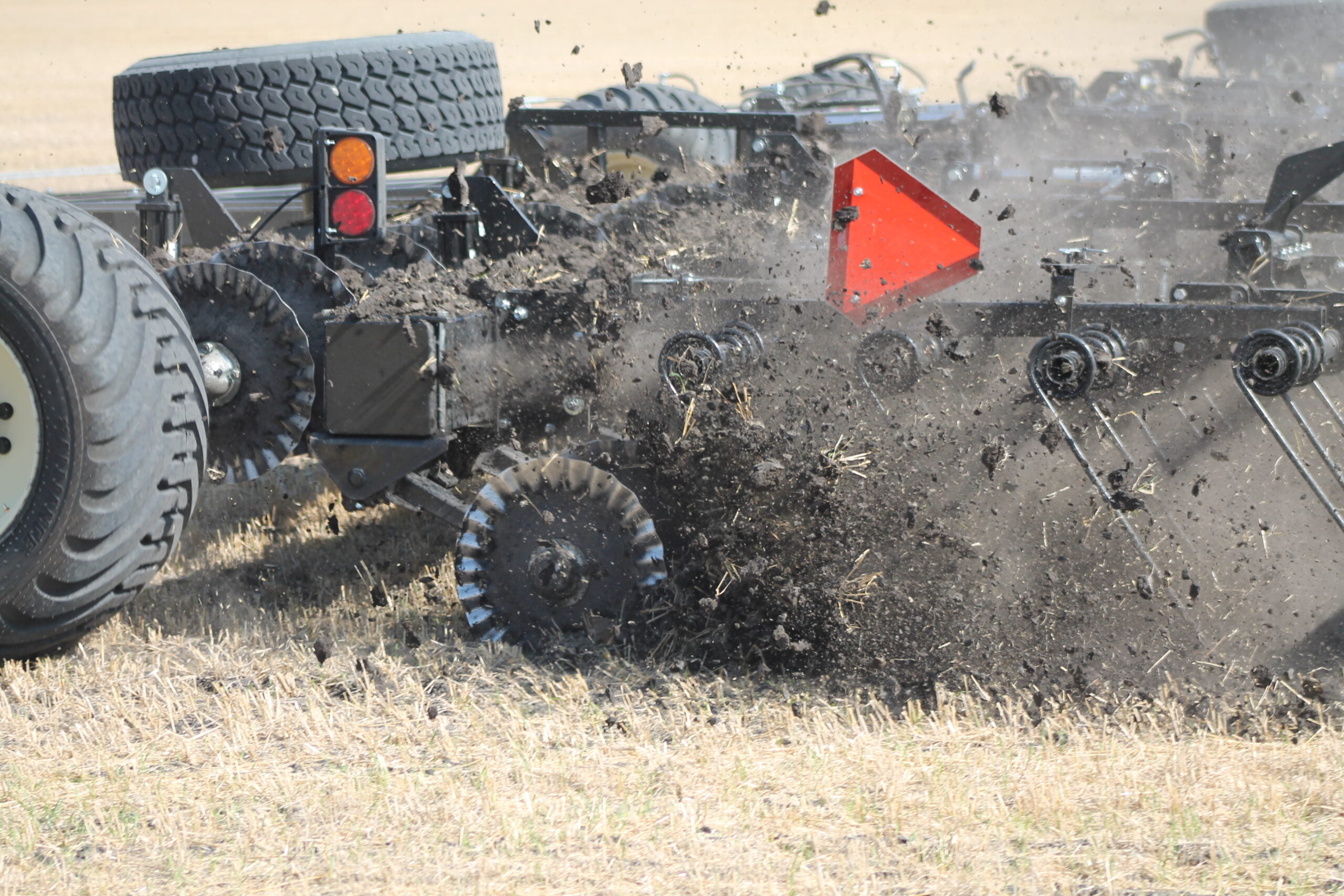

Consists of two rows of 20” soil rebel blades on 12” spacing, heavy tine harrows (5/8” x 30” tines with Gates carbide tips), plus a 14” flat bar rolling basket.
Rear fold design in sizes of 48 and 60 ft
Working speeds up to 11 mph so you can work 50 to 80 acres per hour with a 60 ft unit to stay ahead of those large seeders and planters.
Very productive with only ¼ to ½ gallon per acre fuel consumption.
Incorporate fertilizer, pre-emergence chemicals and achieve your seed bed preparation all in one pass with this tool.
The most durable harrow frame on the market, 10” x 10” square tubing with 1/4” wall thickness.
Applications
- Excellent spring seed bed prep tool, especially in wet conditions
- Fertilizer incorporation
- Residue management
Specifications
| Standard Features | Specifications |
|---|---|
| Available Widths | 48′ and 60′ |
| Frame | 10″ x 10″ x 1/4″ wall tubing |
| Gangs | Two rows of blades that can be run with 1 row, 2 rows, or no rows down |
| Torsion Arms | Proven torsion arm design (2 coulter blades per arm) |
| Coulter Blades | 20″ diameter Soil Rebel™ Blades |
| Coulter Spacing | 12″ spacing with a fixed angle of 7 degrees |
| Harrow Tines | 5/8″ diameter x 30″ length with chrome carbide tips |
| Tine Angle Adjust | Hydraulic Adjust (optional manual adjust available) |
| Wheel Hubs | 12,000 lb 8 lug hubs |
| Tires | 550/22.5 flotation tire |
| Power Requirements | Approximate engine HP requirement 6 to 10 HP per foot |
Optional Equipment
- Rolling Baskets
Dimensions
| Type | Transport Height | Transport Width |
|---|---|---|
| Without Baskets | 16′ 6″ | 13′ 6″ |
| With Baskets | 16′ 2″ | 13′ 6″ |
Weights
| Size | 4 Bar With Baskets | |
|---|---|---|
| 48 ft | 25,900 lbs | |
| 60 ft | 32,400 lbs | |
